Red Sea Shipyard

Tug

RAmparts 2800

Compact Power for Demanding Operations

01 | Overview

Compact Power for Demanding Operations

A well-established ASD tug design by Robert Allan Ltd, a high-performance commercial tug with robust steel construction and strong towing and maneuvering capabilities.

  • 01Ship assist and berthing support
  • 02Towing and pushing operations
  • 03Harbour and terminal towage
  • 04Mooring and firefighting operations
80 tBollard pull
28.2 mLength
11.8 mBeam
12Crew
02

Images & General Arrangement

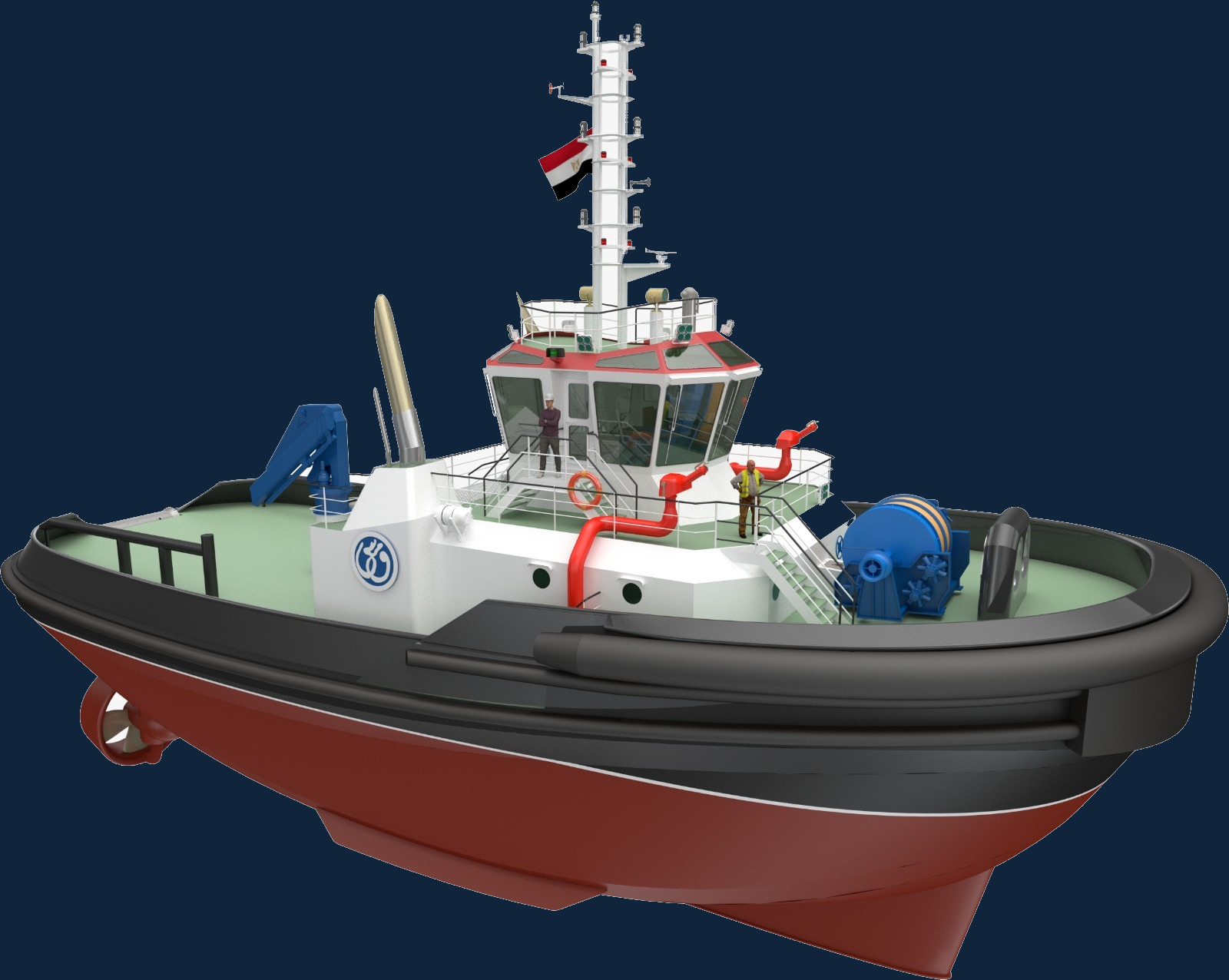

RAmparts 2800 — Starboard profile
01 / 07Starboard profile

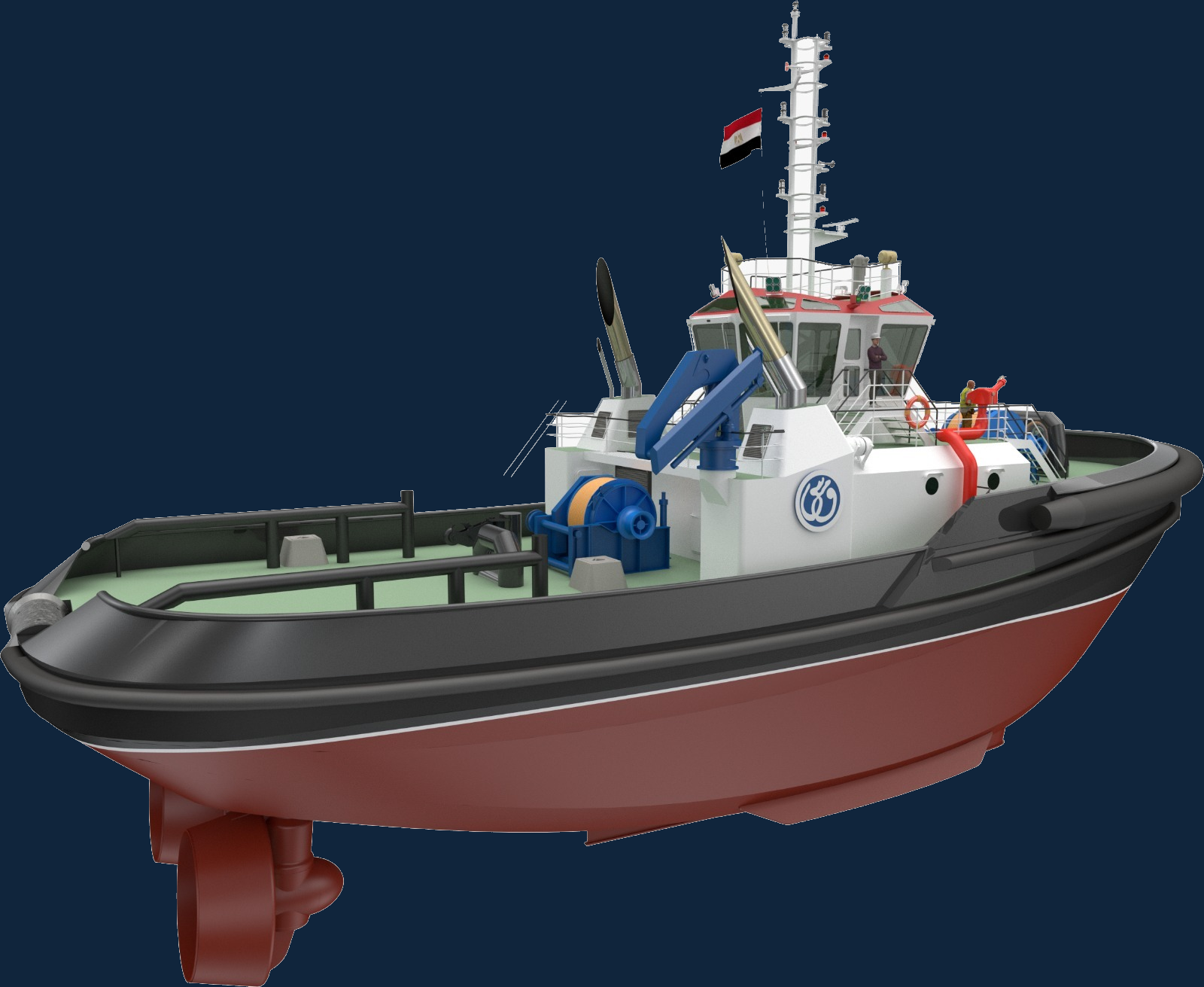

RAmparts 2800 — Port profile
02 / 07Port profile

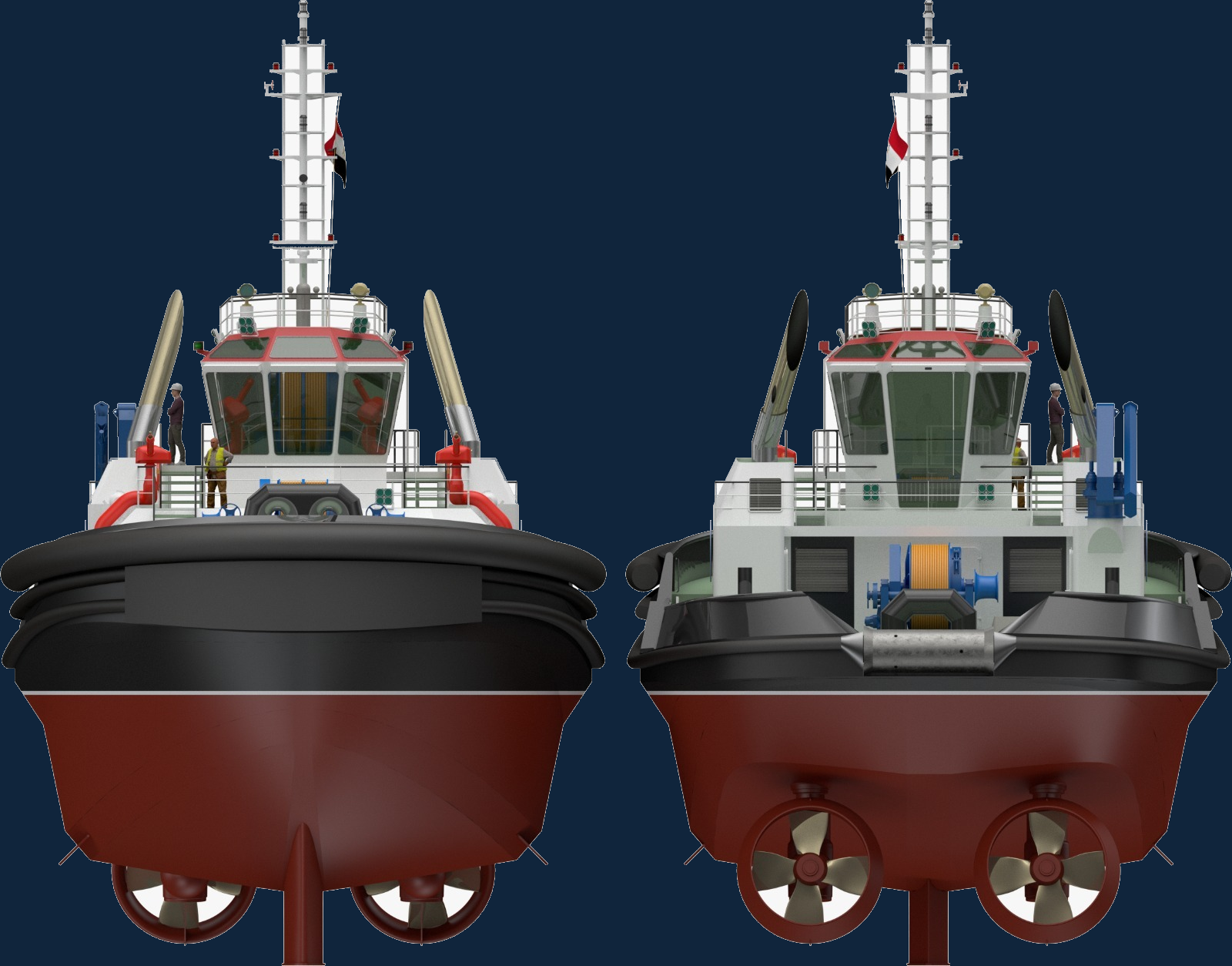

RAmparts 2800 — Bow and stern
03 / 07Bow and stern

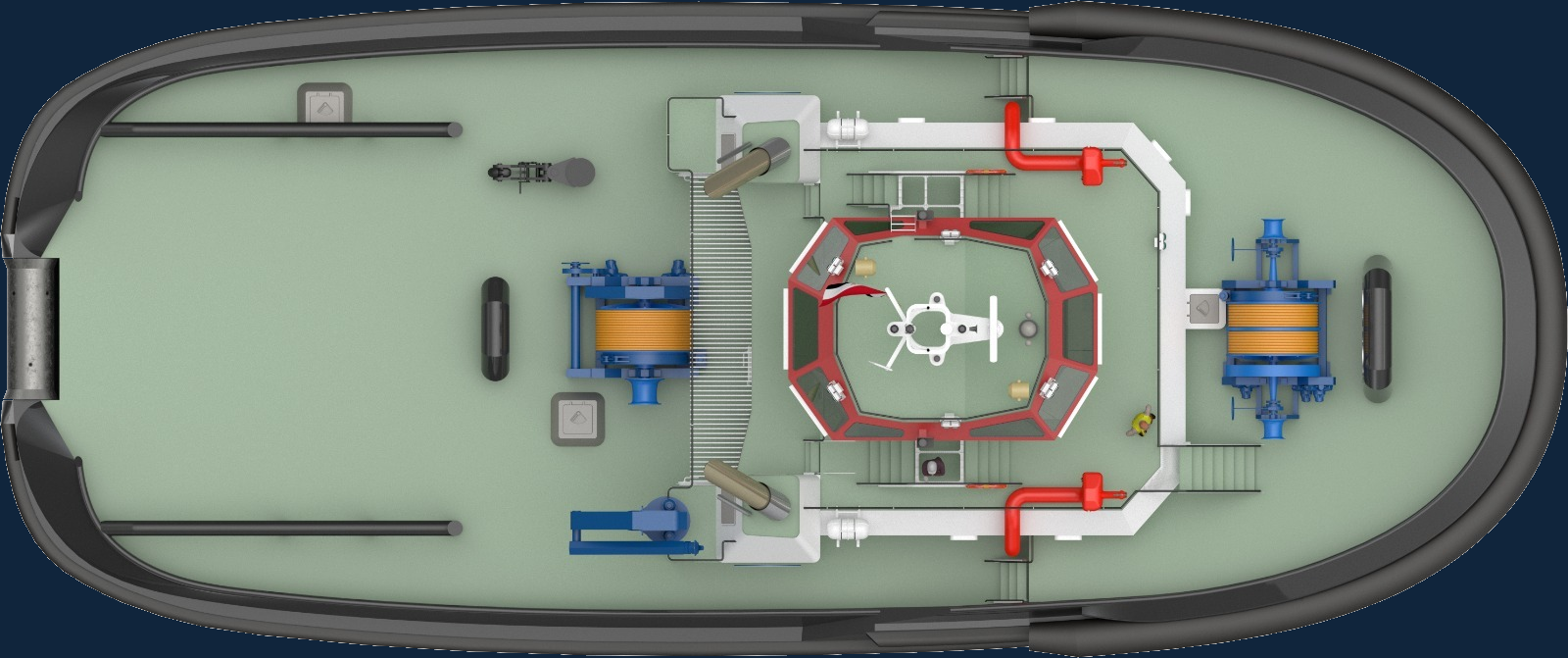

RAmparts 2800 — Deck arrangement
04 / 07Deck arrangement

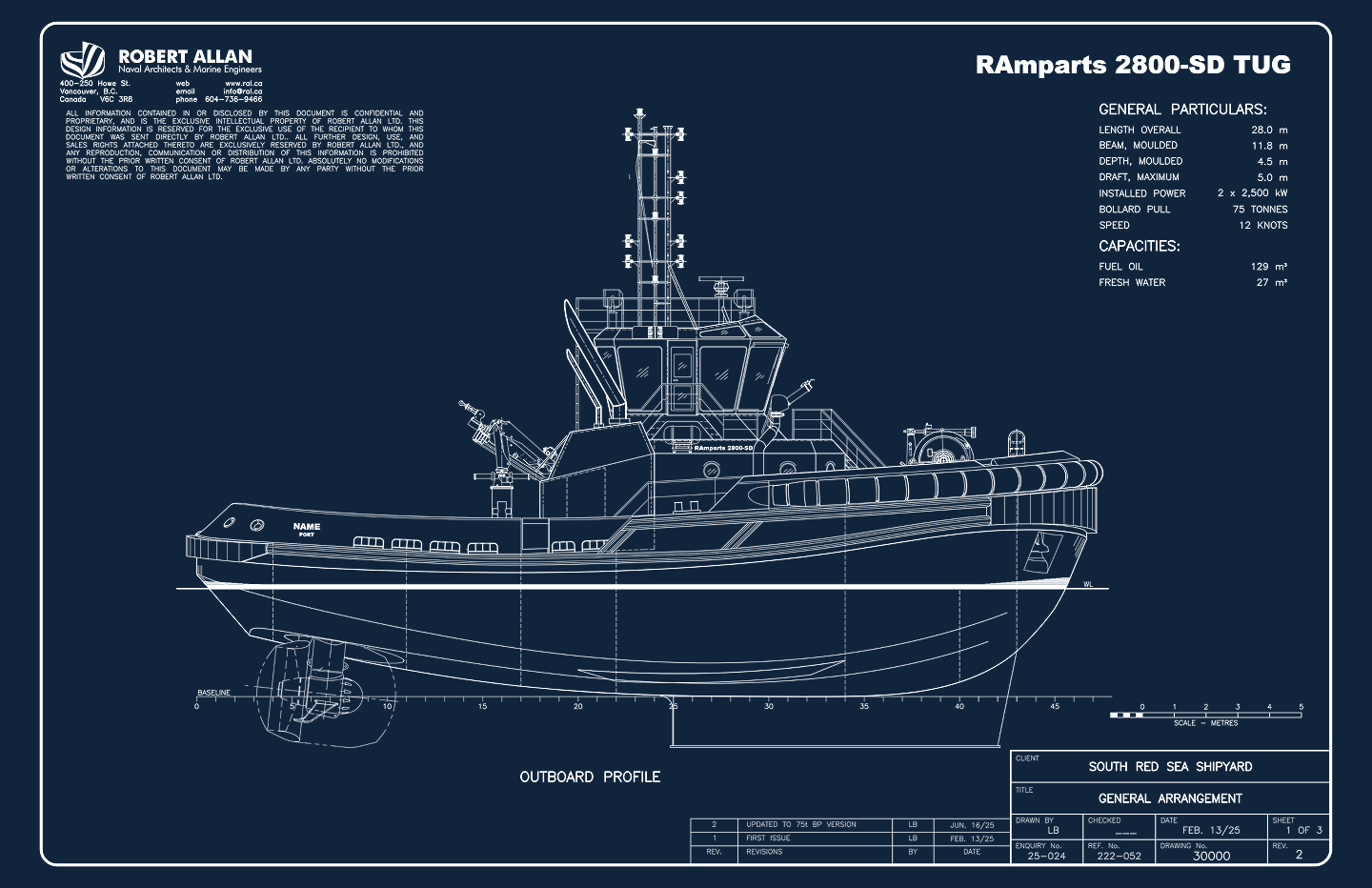

RAmparts 2800 — General arrangement — profile
05 / 07General arrangement — profile

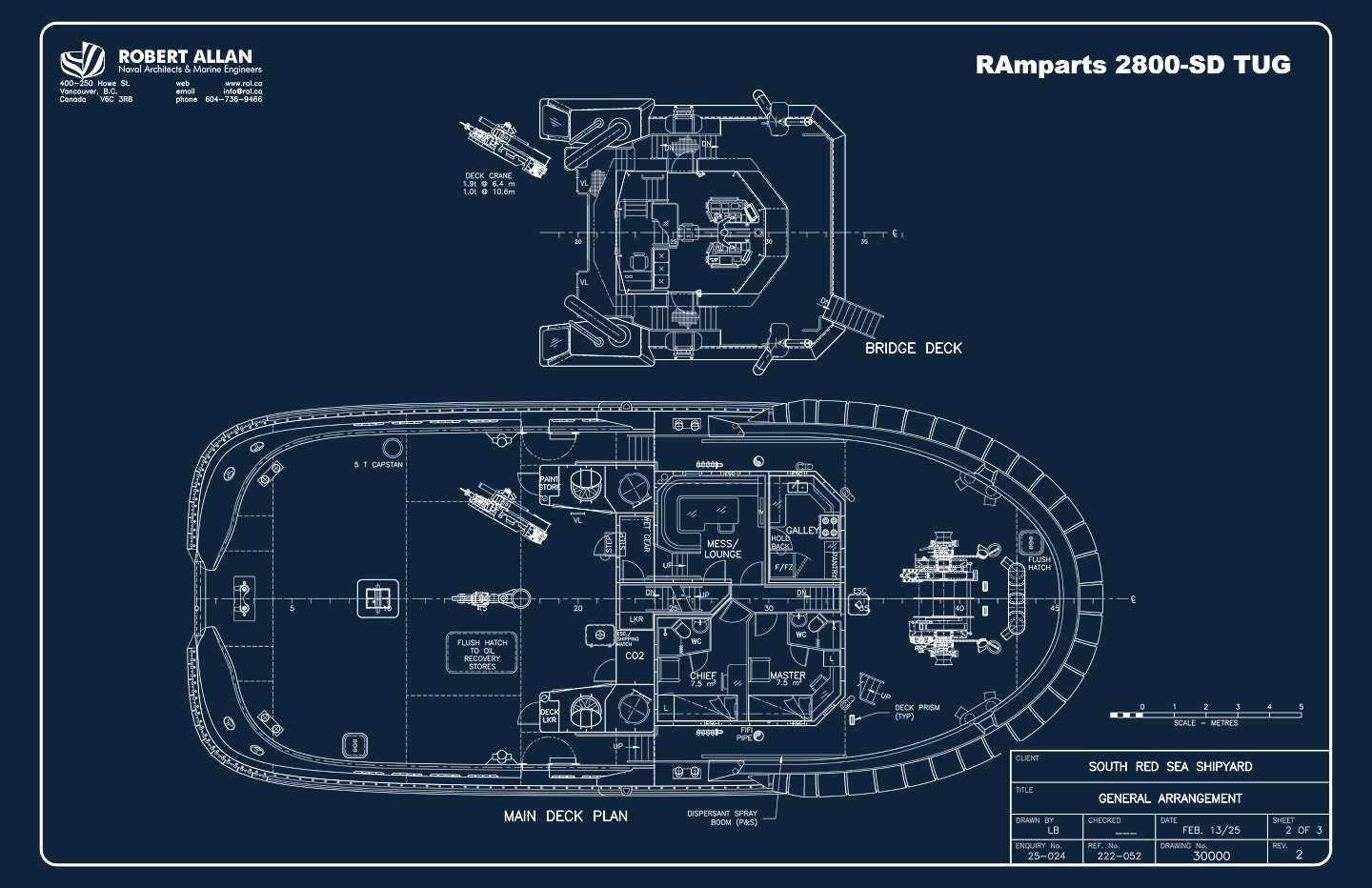

RAmparts 2800 — General arrangement — decks
06 / 07General arrangement — decks

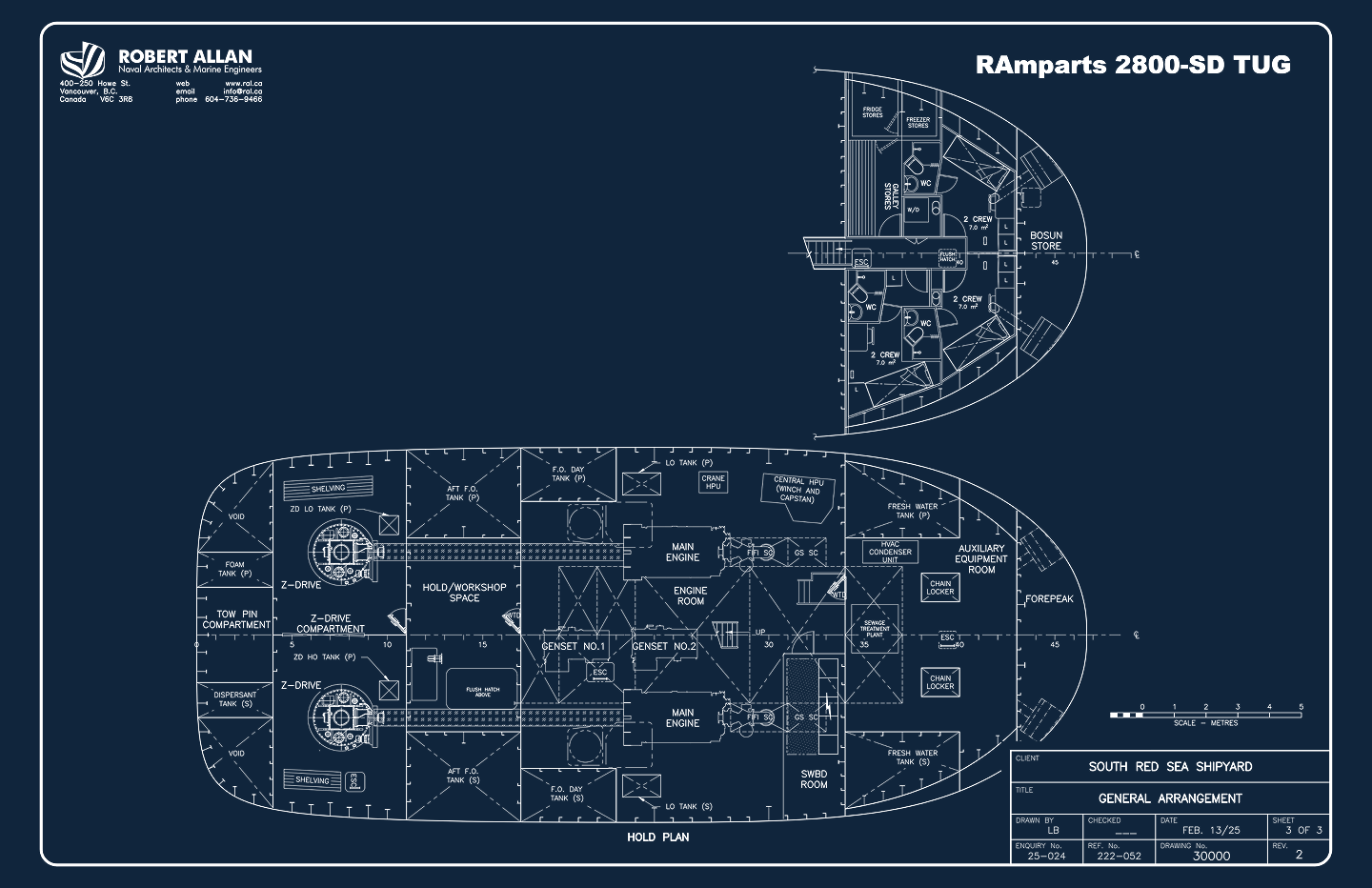

RAmparts 2800 — General arrangement — details
07 / 07General arrangement — details
03

Principal Particulars

01Length Overall28.2 m
02Draft5 m
03Fuel Oil200,000 L
04Engines2 × CAT 3516C, 3,350 HP each
05Speed @ 100 MCR12 kn
06DesignerRobert Allan
07ClassificationBV
08Beam11.8 m
09Gross Tonnage<400 t
10Fresh Water25,000 L
11PropulsionZ-Drive
12Bollard Pull80 t
13Accommodation12
14ConstructionSteel
Red Sea Shipyard — Safaga · Red Sea

Full technical data available upon request
