Red Sea Shipyard

Fishing Vessel

Long Liner

Designed for Extended Deep-Sea Operations

01 | Overview

Designed for Extended Deep-Sea Operations

A 50-metre steel fishing vessel balancing fishing capacity, onboard storage and crew comfort for reliable extended operations.

50 mLength
10.2 mBeam
24Capacity
12 knTop speed
02

Images & General Arrangement

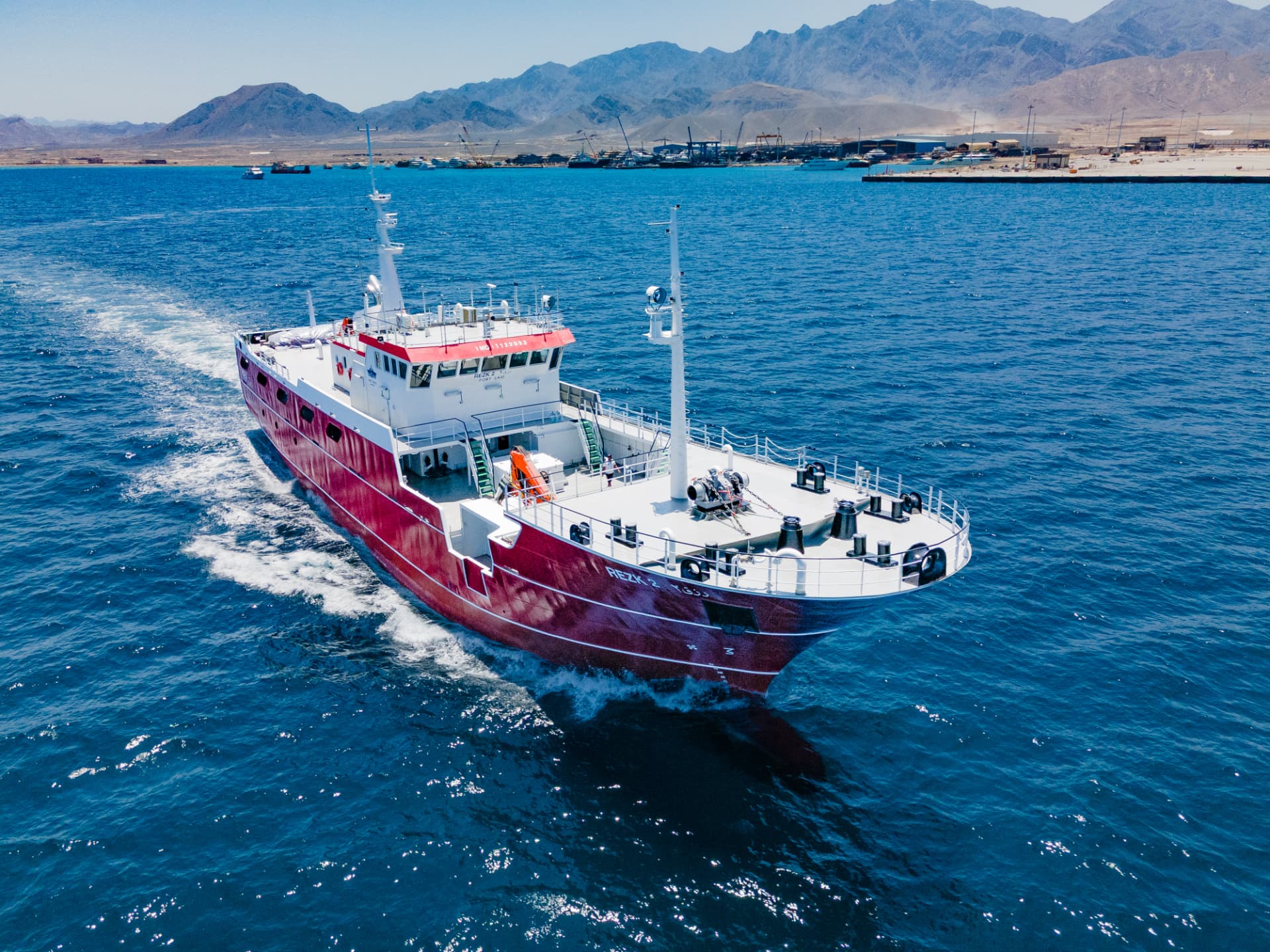

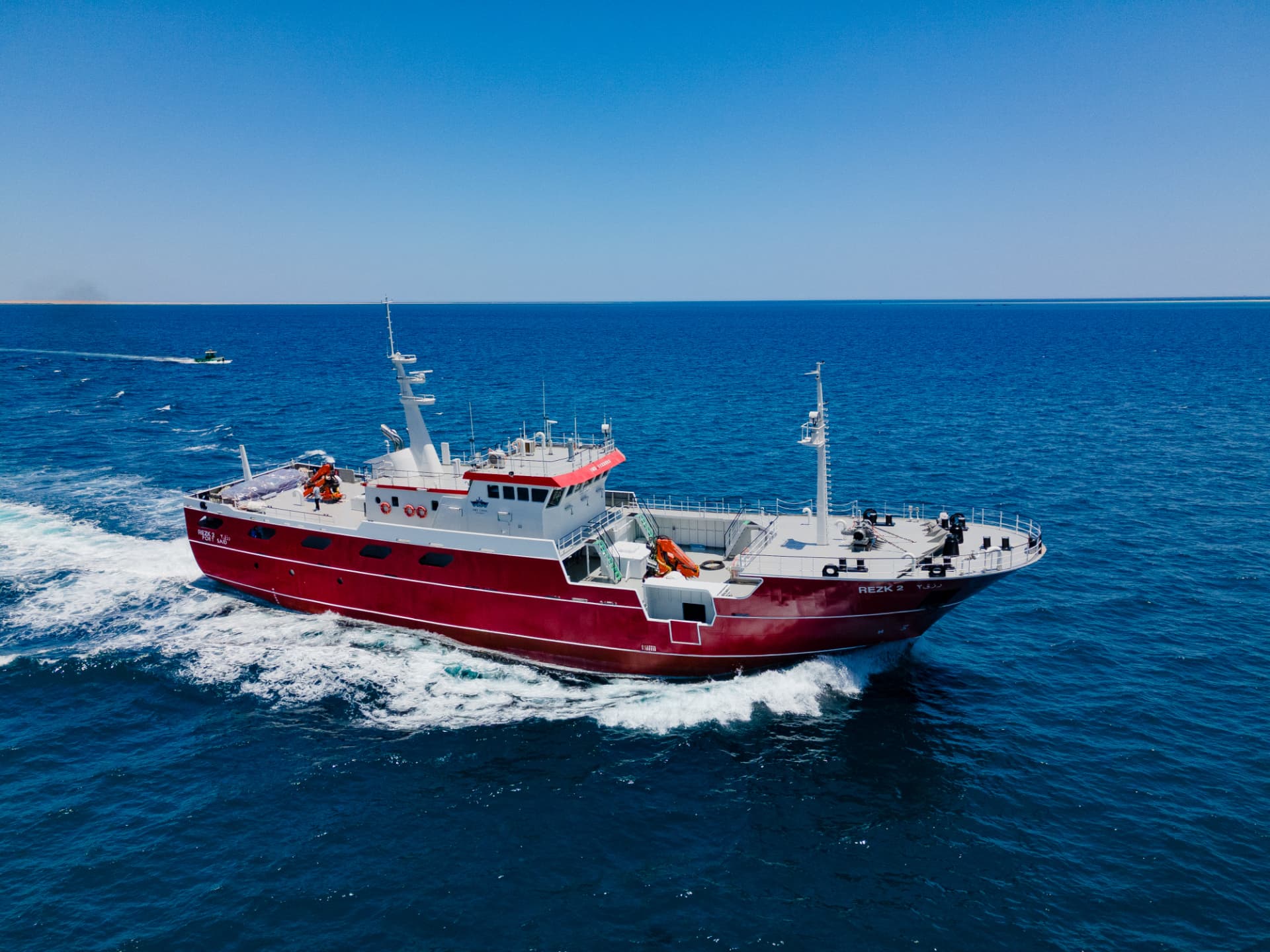

Long Liner — Underway, bow quarter
01 / 08Underway, bow quarter

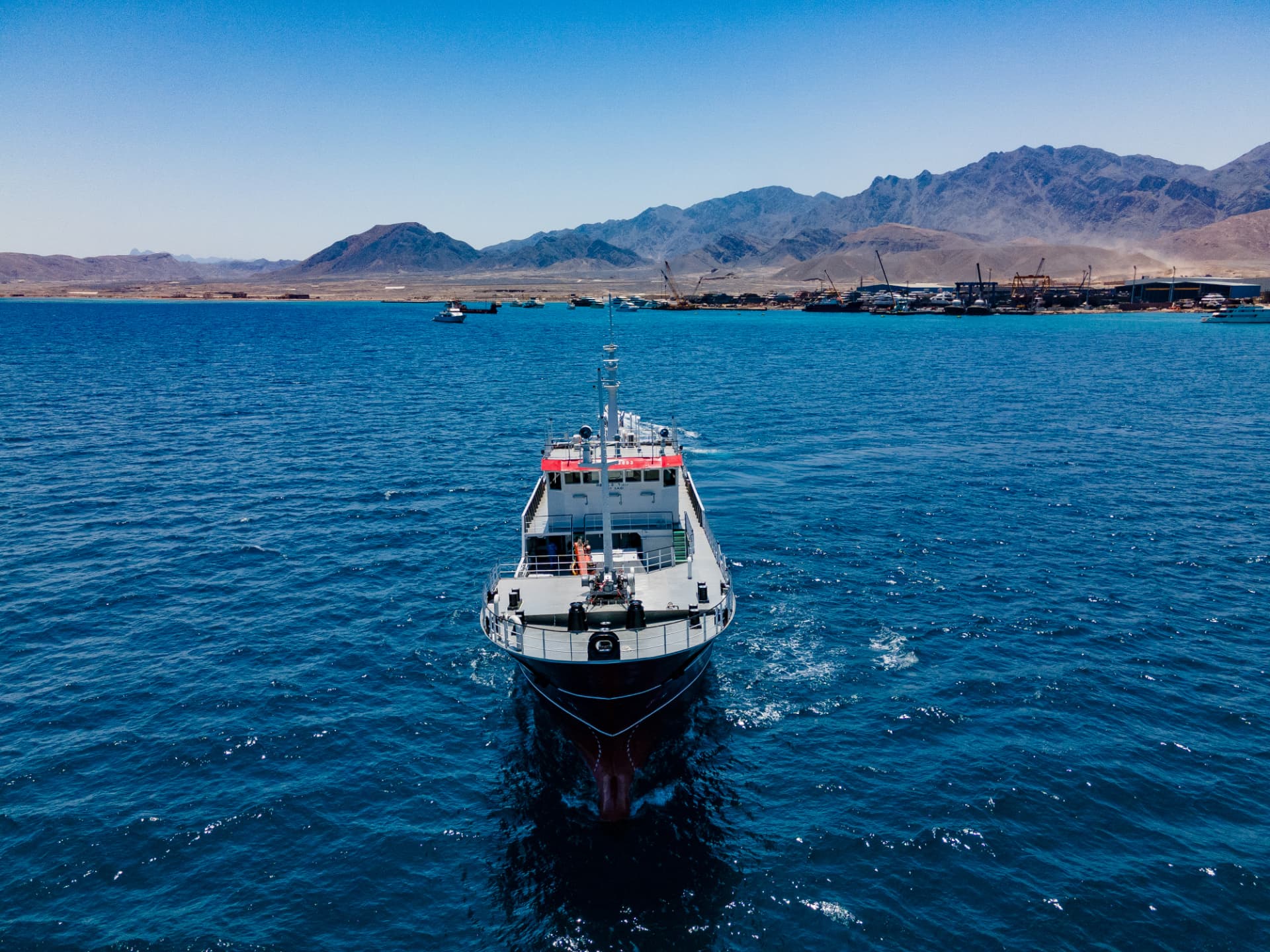

Long Liner — Head-on approach
02 / 08Head-on approach

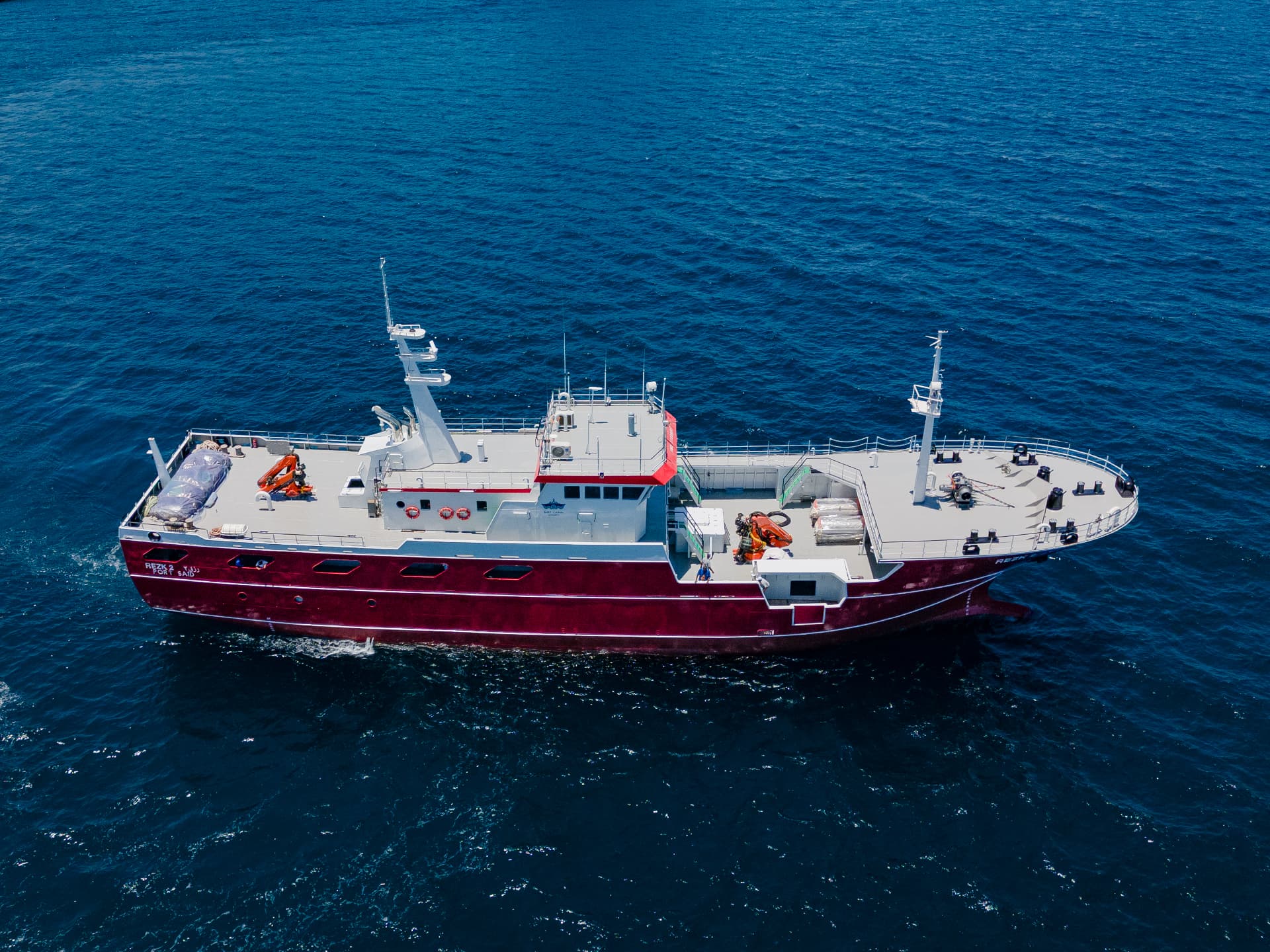

Long Liner — Starboard profile, aerial
03 / 08Starboard profile, aerial

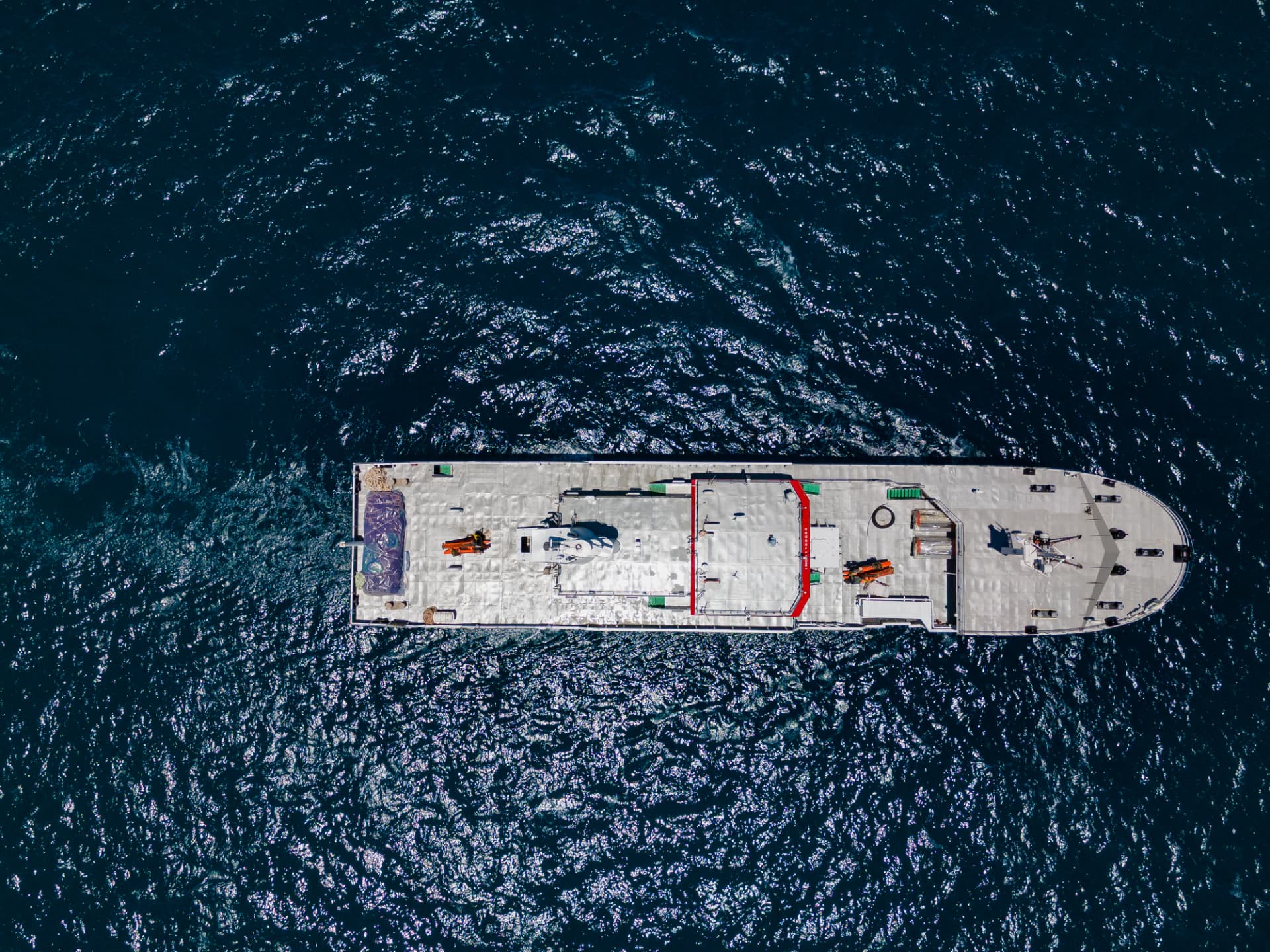

Long Liner — Deck plan from above
04 / 08Deck plan from above

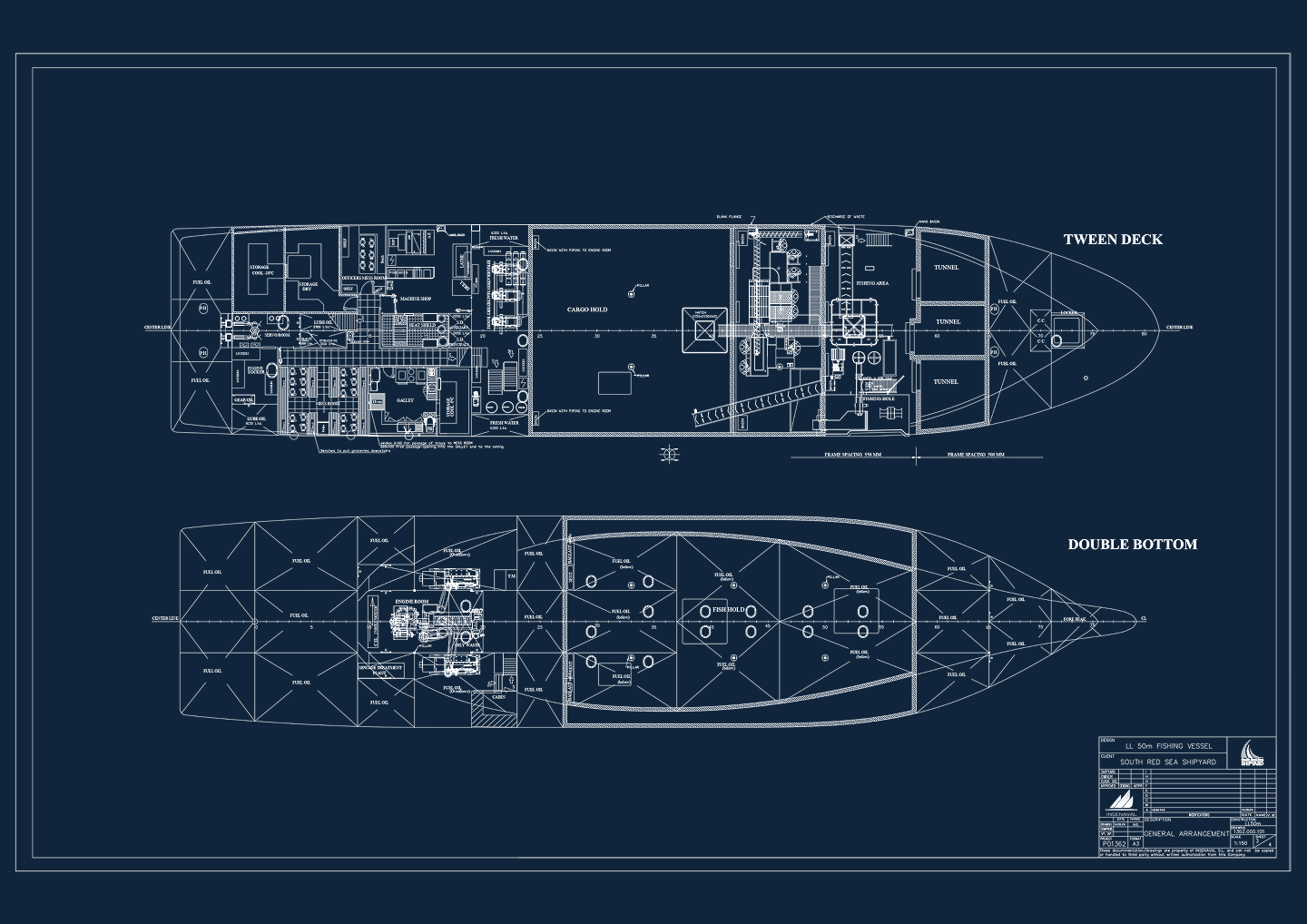

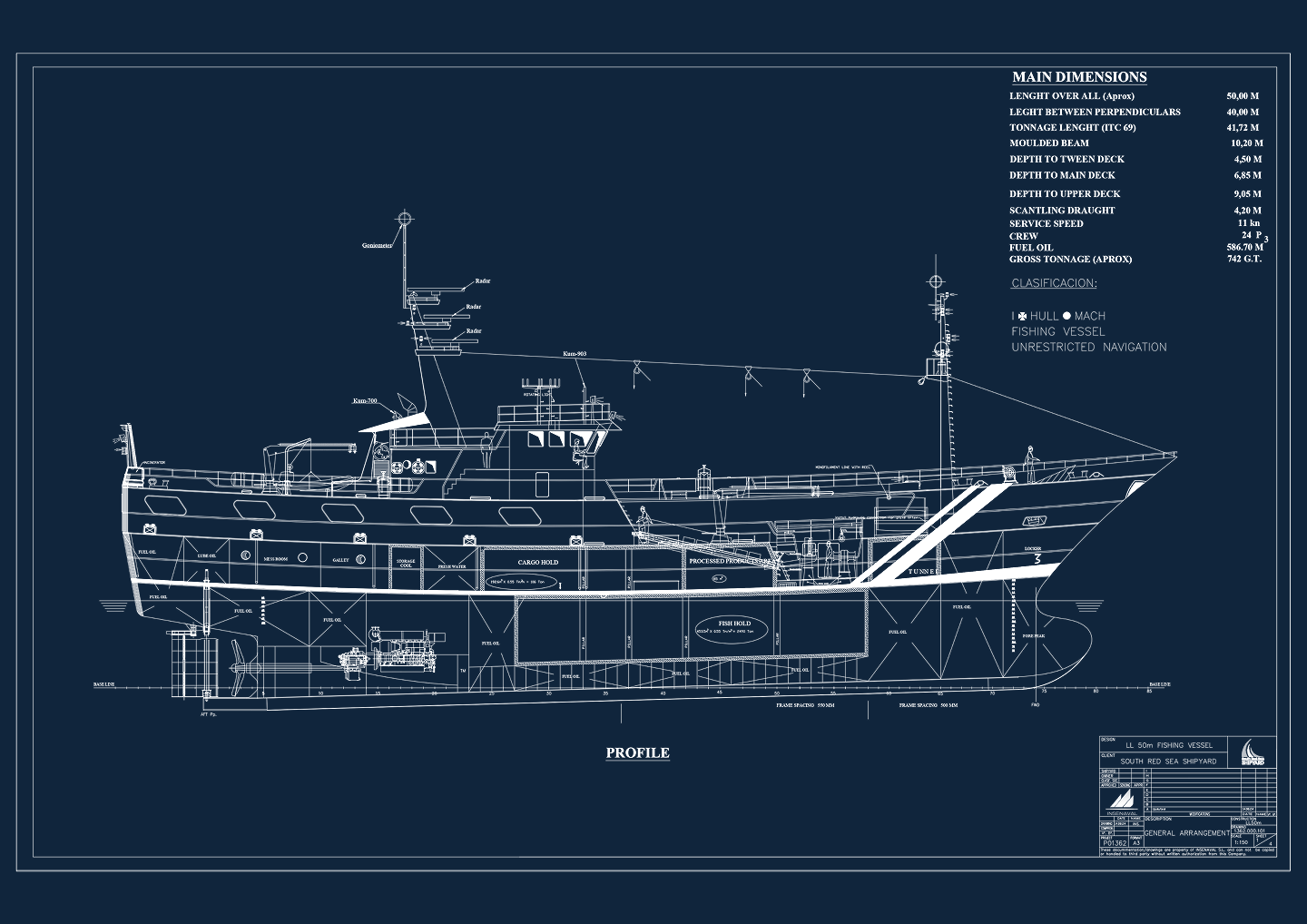

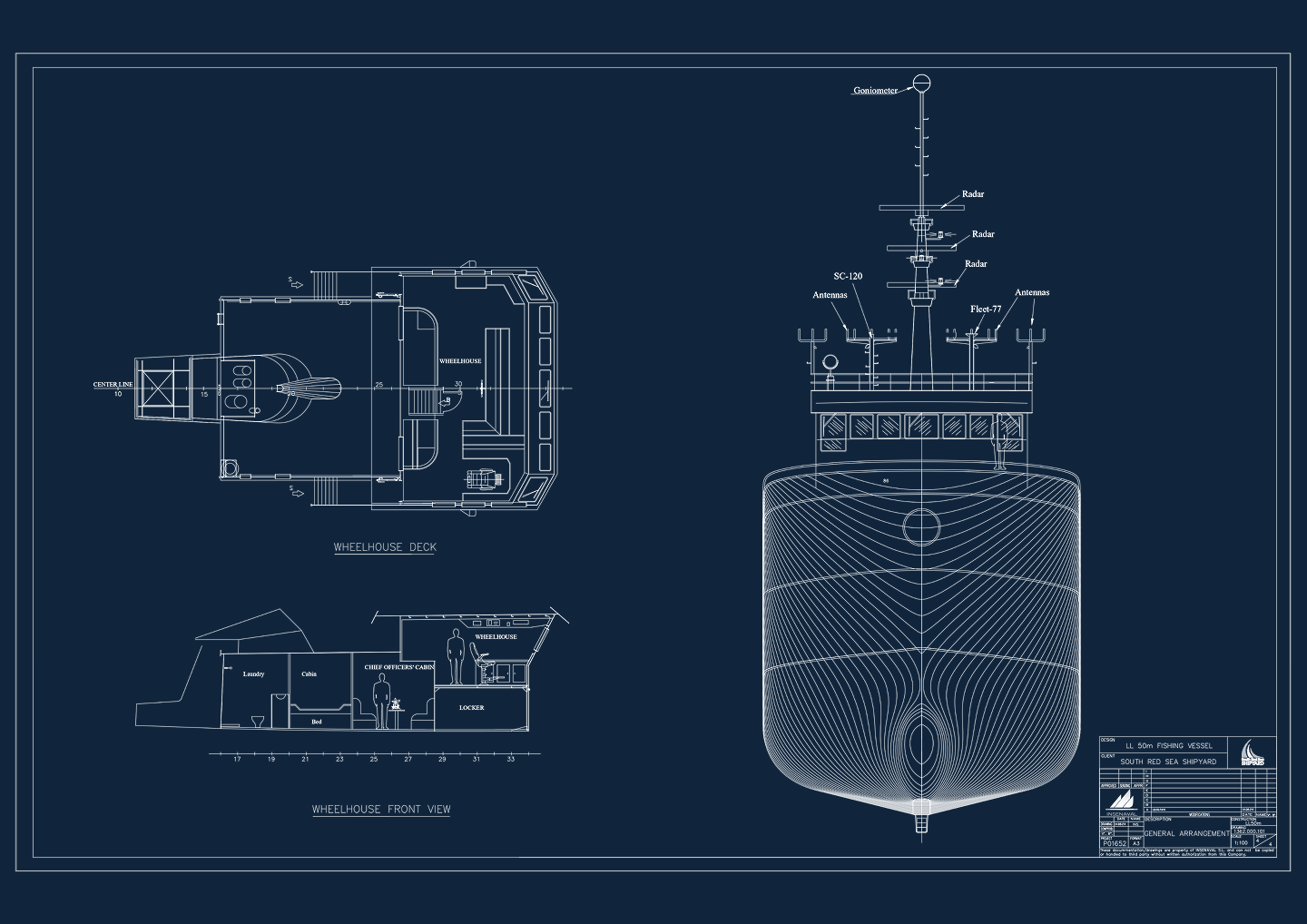

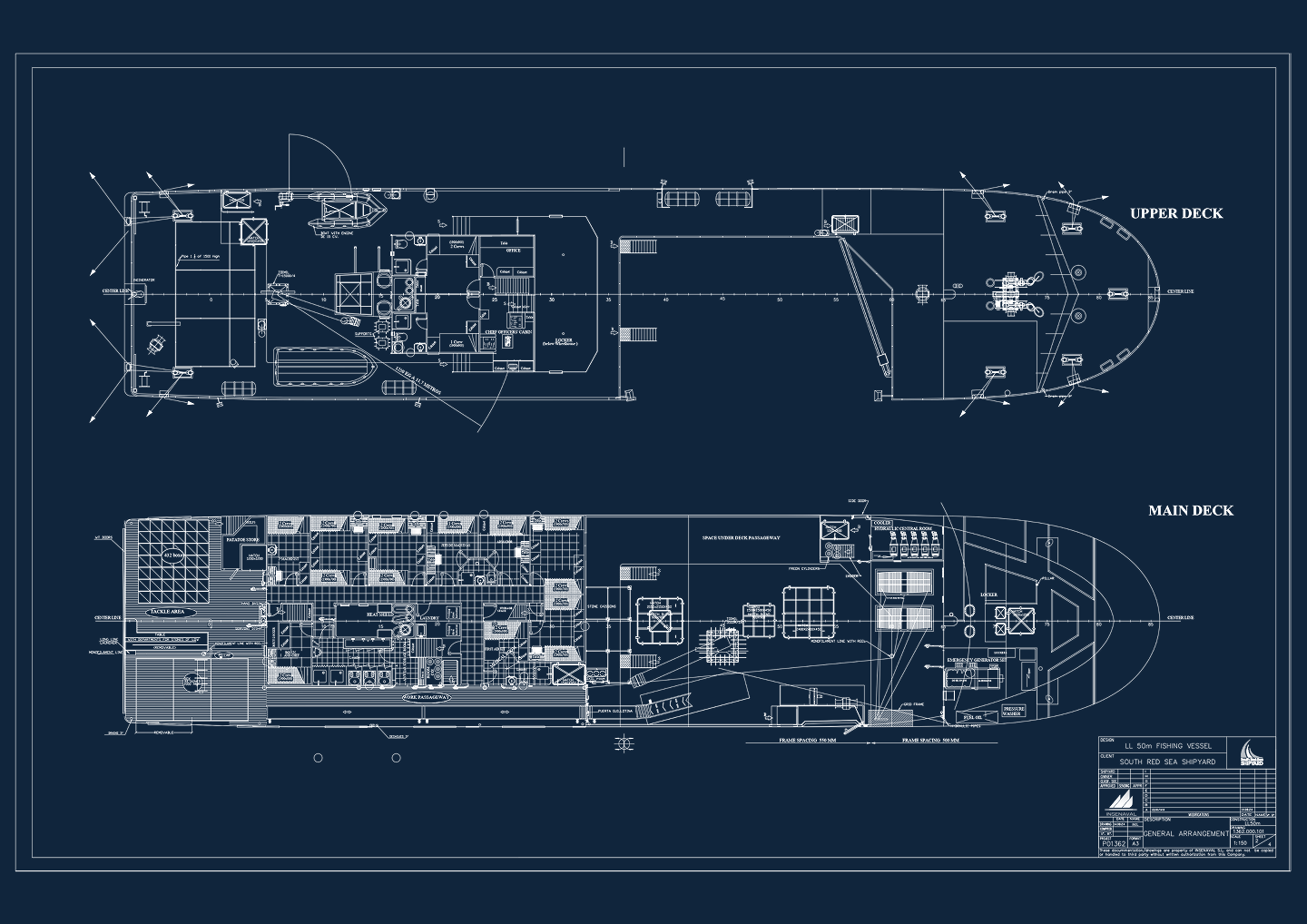

Long Liner — General arrangement — sheet 01
05 / 08General arrangement — sheet 01
Long Liner — General arrangement — sheet 02
06 / 08General arrangement — sheet 02
Long Liner — General arrangement — sheet 03
07 / 08General arrangement — sheet 03
Long Liner — General arrangement — sheet 04
08 / 08General arrangement — sheet 04
03

Principal Particulars

01Length Overall50 m
02Beam10.2 m
03Draft4.2 m
04Gross Tonnage742 t
05Fuel Oil600,000 L
06Fresh Water12,000 L
07Engines2 × ABC 1,520 HP
08Top Speed12 kn
09Fish Hold450 m³
10Freeze Capacity6.6 tons / 16 hours
11Accommodation24
12ClassificationRINA / BV
13ConstructionSteel
14DesignerInsenaval
Red Sea Shipyard — Safaga · Red Sea

Full technical data available upon request
