Red Sea Shipyard

Fishing Vessel

Stern Trawler

Capacity for the Working Sea

01 | Overview

Capacity for the Working Sea

A robust commercial fishing vessel designed for efficient fishing, onboard fish storage and freezing during extended operations.

50.3 mLength
9.7 mBeam
20Capacity
11 knTop speed
02

Images & General Arrangement

Stern Trawler — Starboard profile
01 / 10Starboard profile

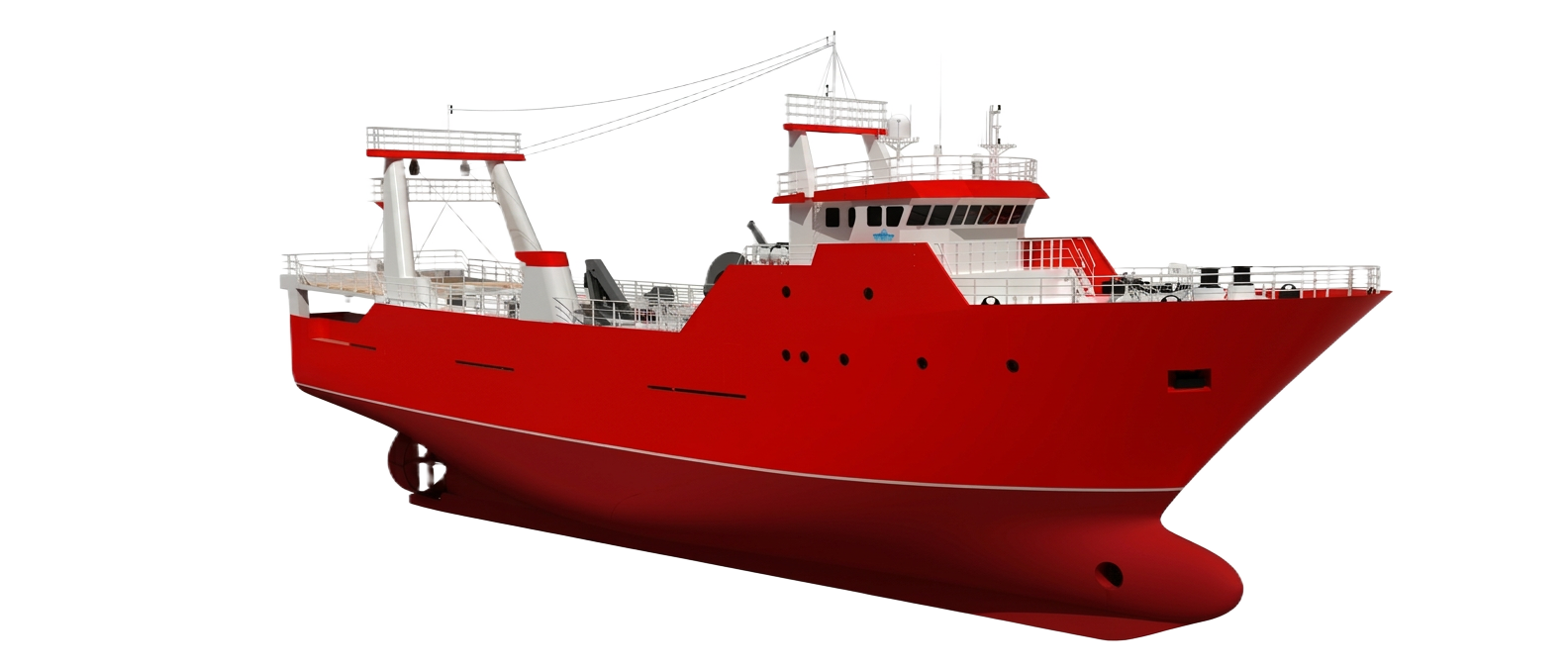

Stern Trawler — Starboard bow quarter
02 / 10Starboard bow quarter

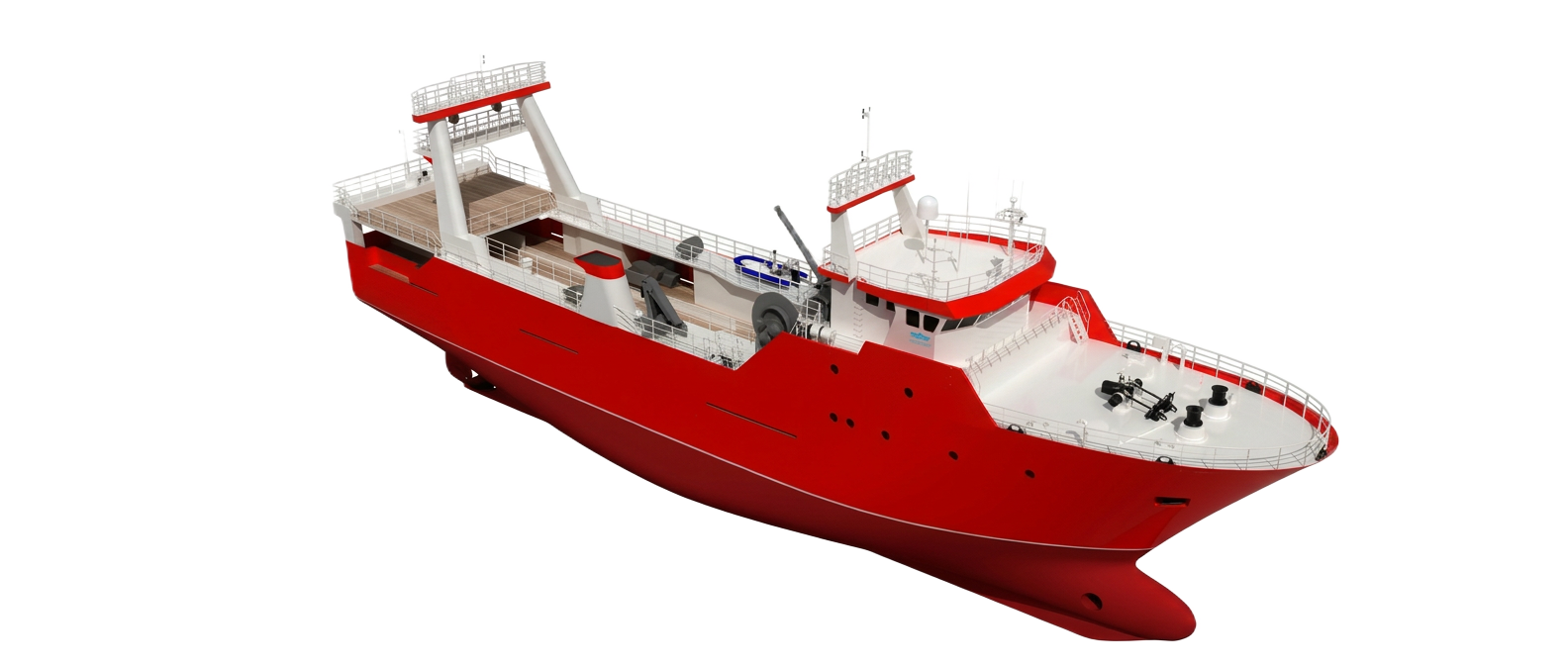

Stern Trawler — Elevated starboard bow
03 / 10Elevated starboard bow

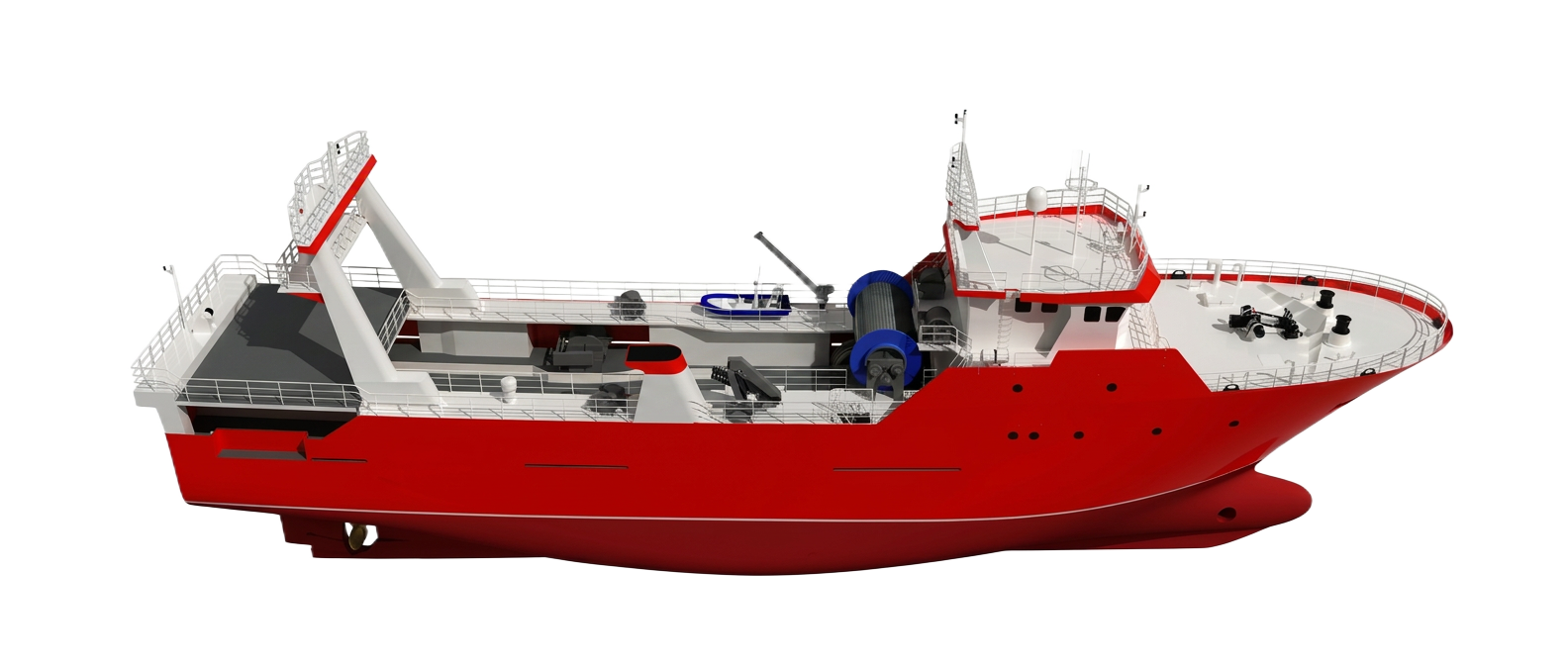

Stern Trawler — Elevated starboard profile
04 / 10Elevated starboard profile

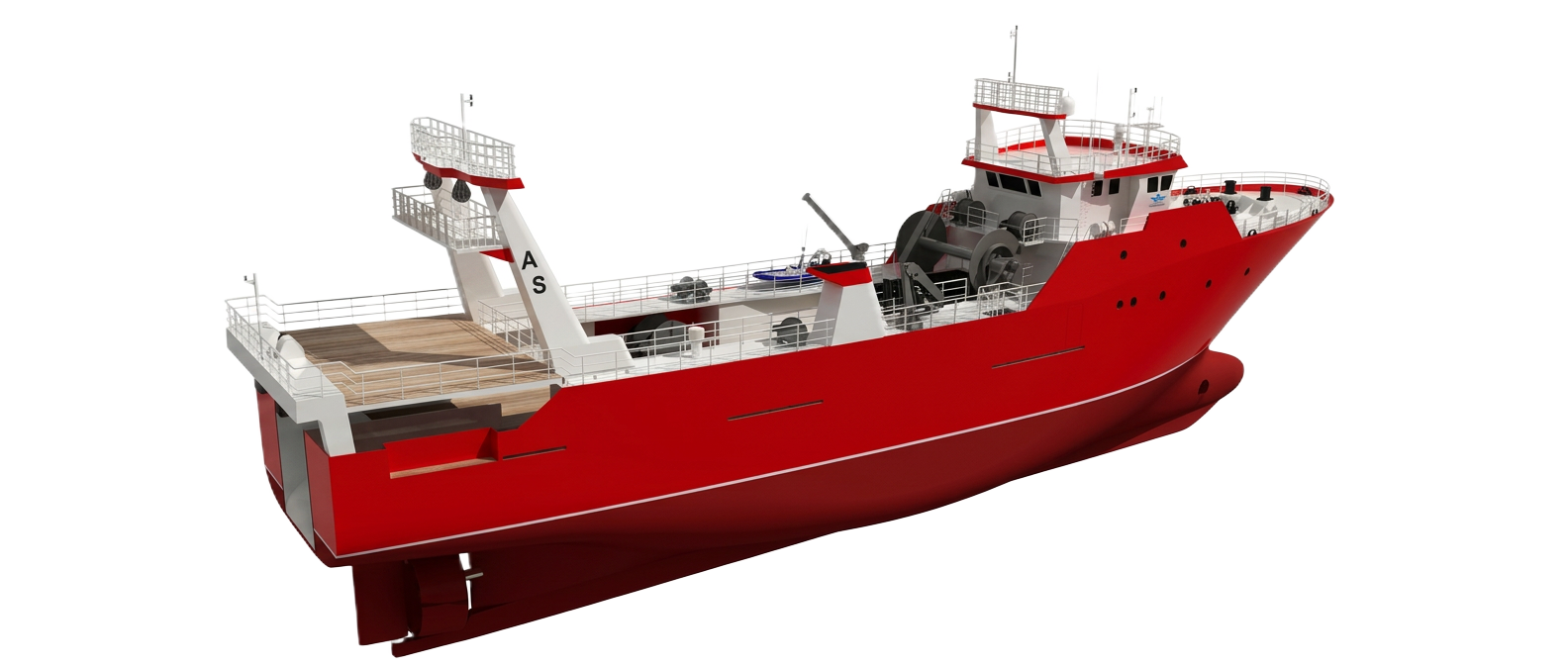

Stern Trawler — Port stern quarter
05 / 10Port stern quarter

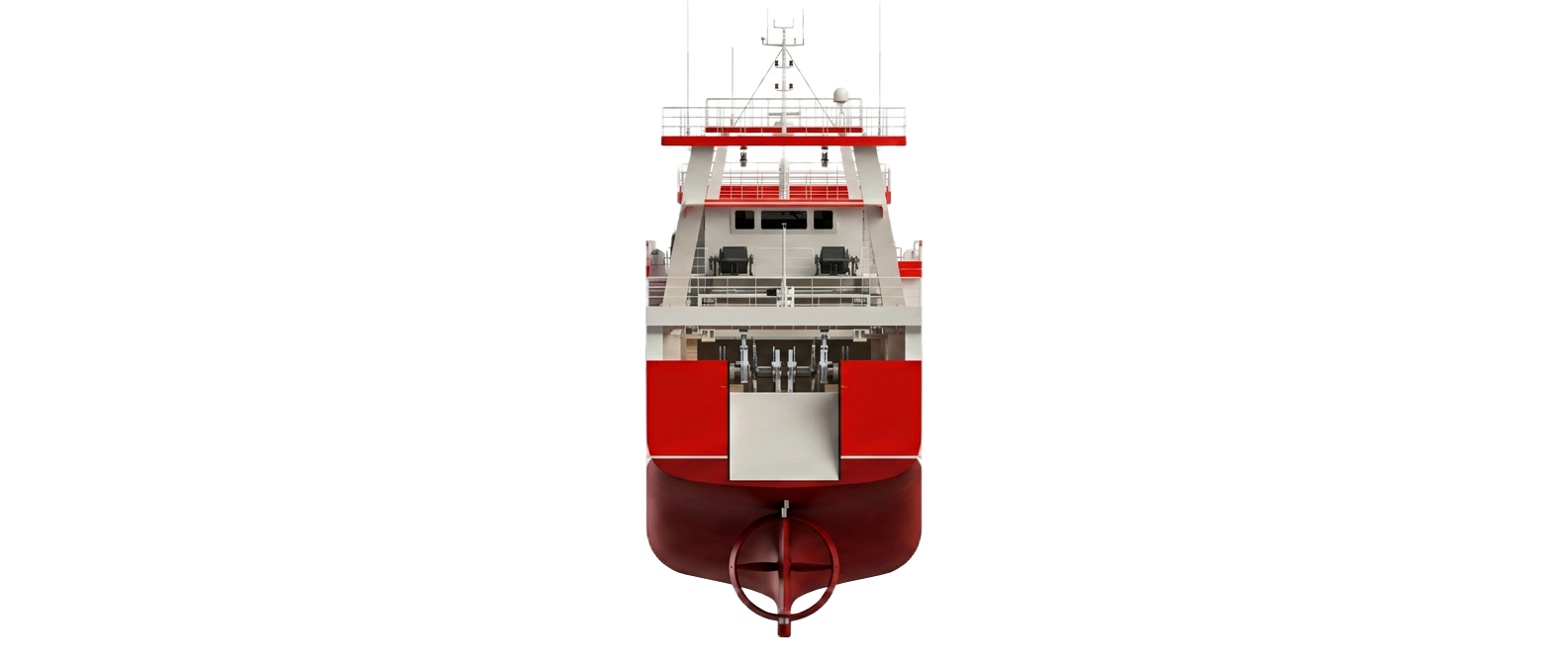

Stern Trawler — Stern elevation
06 / 10Stern elevation

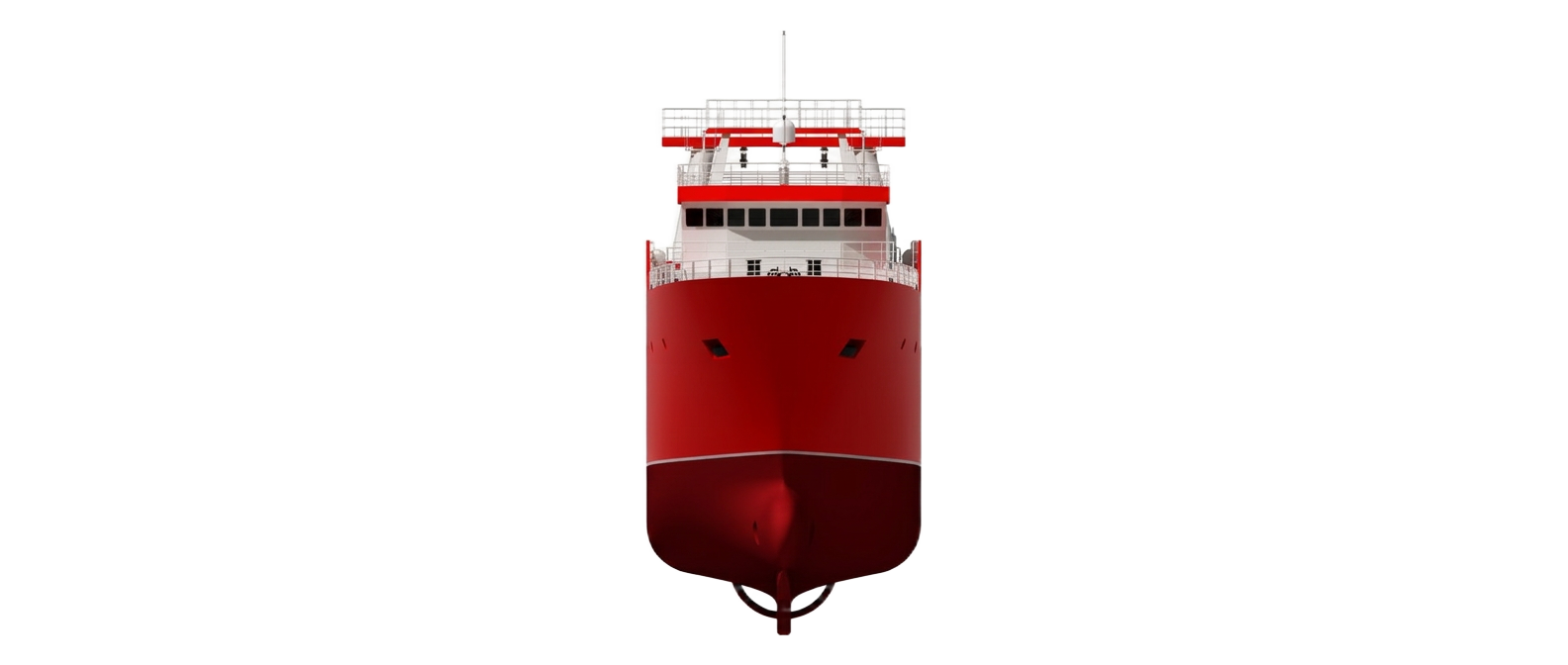

Stern Trawler — Bow elevation
07 / 10Bow elevation

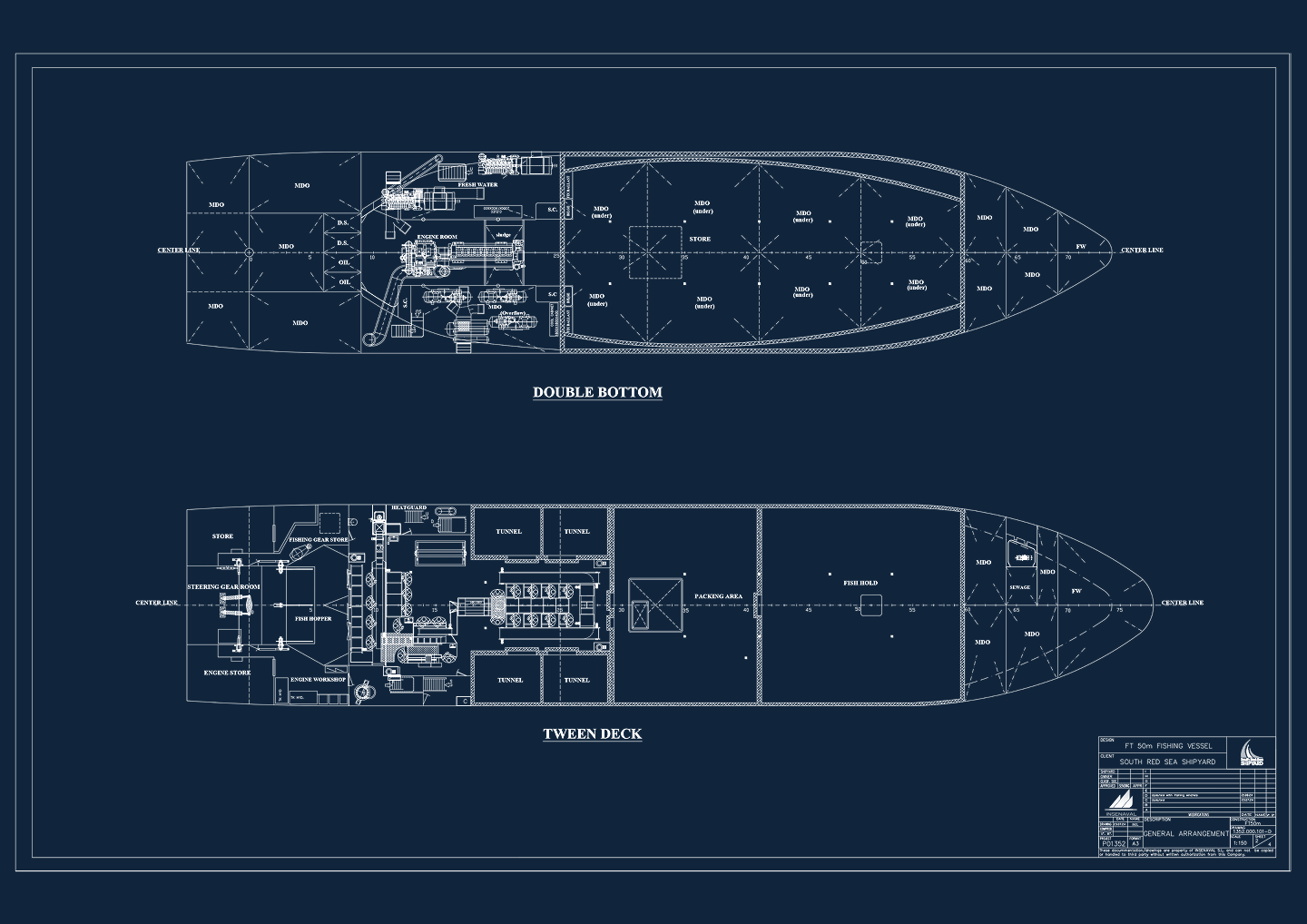

Stern Trawler — General arrangement — sheet 02
08 / 10General arrangement — sheet 02

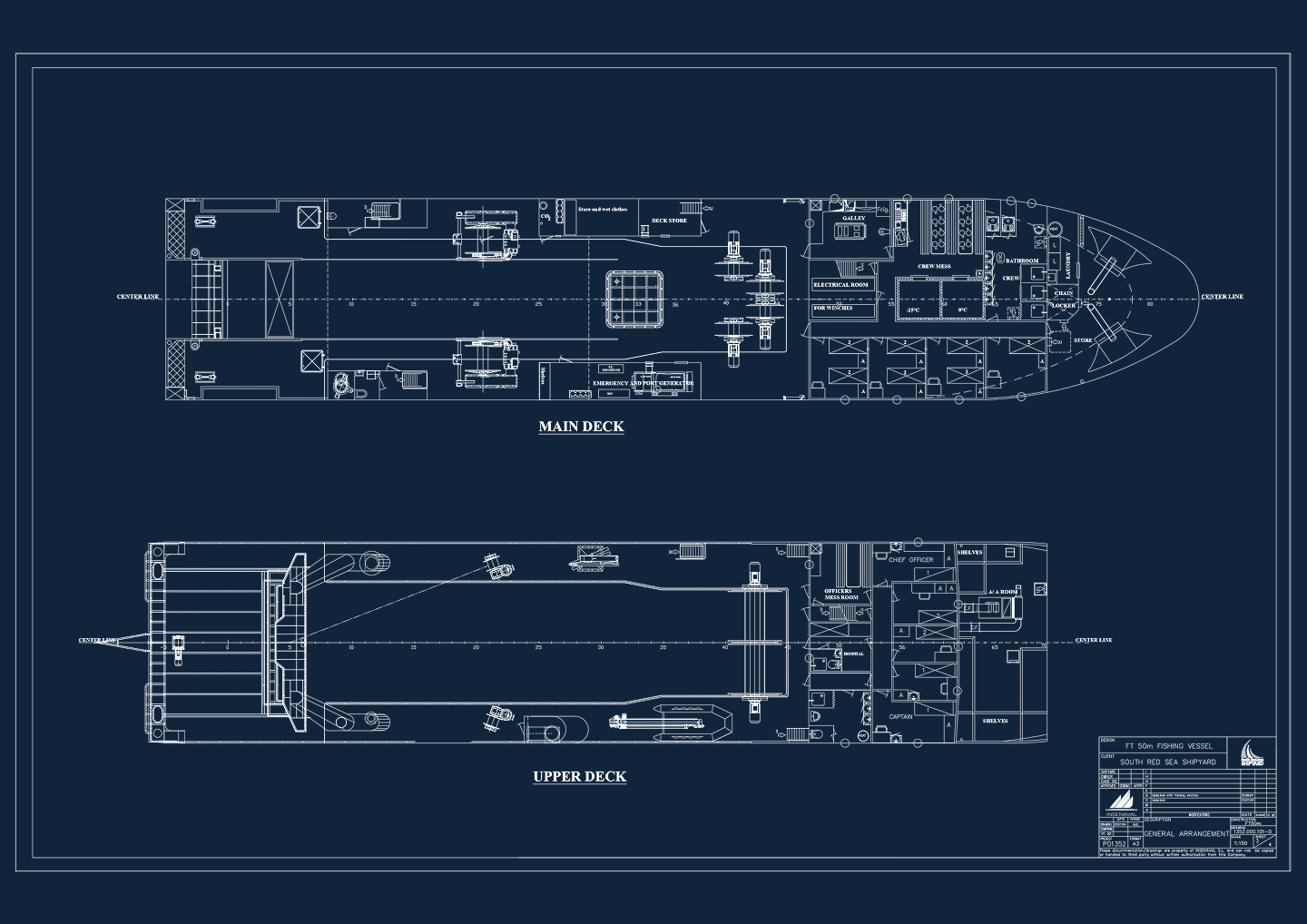

Stern Trawler — General arrangement — sheet 03
09 / 10General arrangement — sheet 03

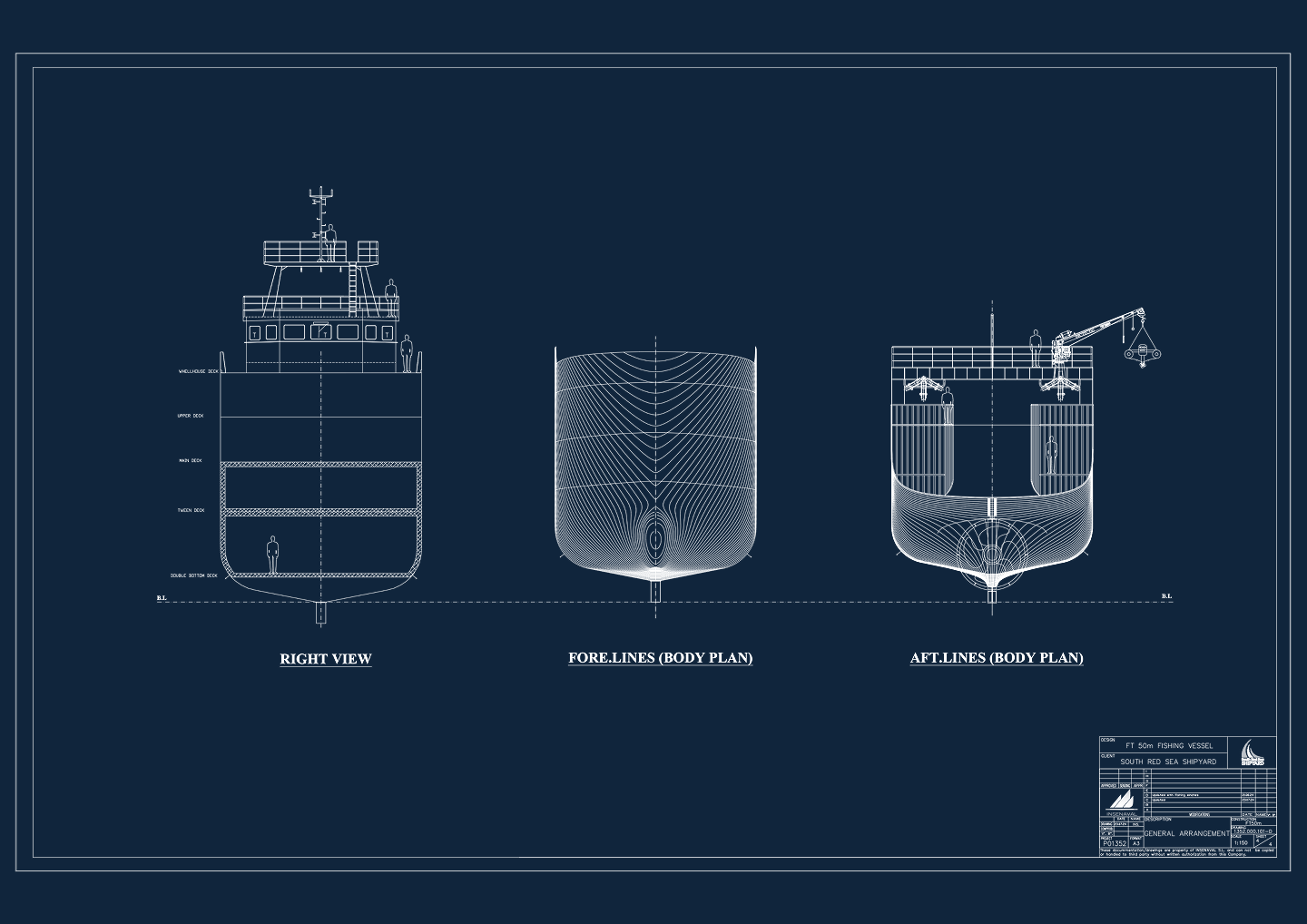

Stern Trawler — General arrangement — sheet 04
10 / 10General arrangement — sheet 04
03

Principal Particulars

01Length Overall50.3 m
02Beam9.7 m
03Draft4.35 m
04Gross Tonnage825 t
05Fuel Oil350,000 L
06Fresh Water6,000 L
07Engines2 × ABC 1,520 HP
08Top Speed11 kn
09Fish Hold450 m³
10Freeze Capacity24 tons/day
11Accommodation20
12ClassificationRINA / BV
13ConstructionSteel
14DesignerInsenaval
Red Sea Shipyard — Safaga · Red Sea

Full technical data available upon request
